Aceti Art 45 Abrasive Belt Linisher Pedestal Mounted

Aceti Art 45 abrasive belt linisher, 100x1000mm belt, single speed, pedestal mounted.

The Aceti Art 45 abrasive belt linisher has a single speed motor and its robust design makes it ideal for most workshop applications.

The belt can be used on the platen or contact wheel and is orientable to allow for better belt positioning to suit the work being processed.

The machine is supplied mounted on a stand which is ideal for belt storage and features a dust extraction point at rear of machine. A built in extractor is also available as an option.

Various motor voltages and speed available as options.

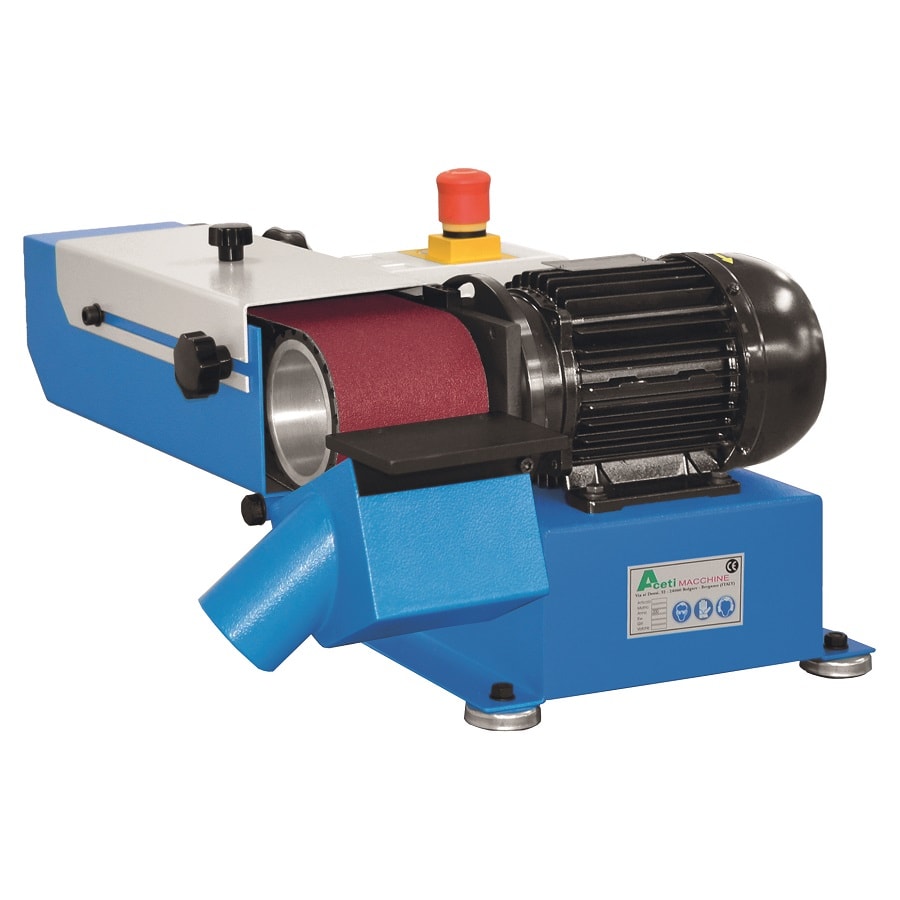

Machine is also available as a bench mounted machine (Art 22)

Art 45
Voltage 415 v
Power  1.1 kw
Speed Single
RPM 2800 rpm
Belt Size 100 x 1000 mm
Weight kg 28
Dimensions (cm) 55 x 45 x 600

Features

Fully orientable belt grinding position.
Effective Contact wheel with helical groove for greatly enhanced material removal.
Powerful single speed three-phase motor with 1.1 kW power.
