Gecam 128SL Abrasive Centreless Grinder
Gecam 128SL abrasive centreless grinder is for tubes from 5 to 110mm diameter.

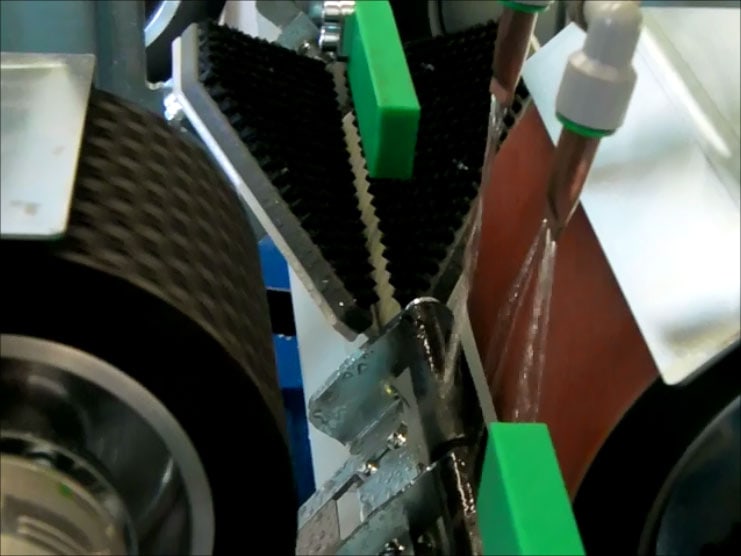

The Gecam 128SL is an abrasive centreless grinding machine with a 150mm wide belt for grinding, cleaning and polishing of tubes and pipes with a diameter of between 5 to 110 mm. The machine is very easy to use and set up and can produce all finishes from heavy graining to bright polish dependant on the consumables used.
A variant of this machine is also available with a 75mm wide belt.
Enquiry: Gecam 128SL Abrasive Centreless Grinder
Weight | 180 kg |
---|---|
Belt Size | 150x2000mm |
Tube Size | 5 to 110mm Dia |
Voltage | 415v |
Power | 3.5kW |
Speed | 1400 & 2800rpm |
Dimensions mm - L x W x H | 1500 x 700 x 1450 |
Features
- Twin speed motor
- Cabinet stand.
- Prismatic guide supporting work piece.
- Electrical system situated in a watertight metal box.
- Variable speed feed wheel.
- Available also as a wet unit.
Need to know more about our Gecam 128SL Abrasive Centreless Grinder?
Give us a call on +44 (0)121 506 6095 or drop us an email to enquiries@echopkins-bham.co.uk
Alternatively you can request a callback below, fill out the form and we'll be in touch as soon as possible.
