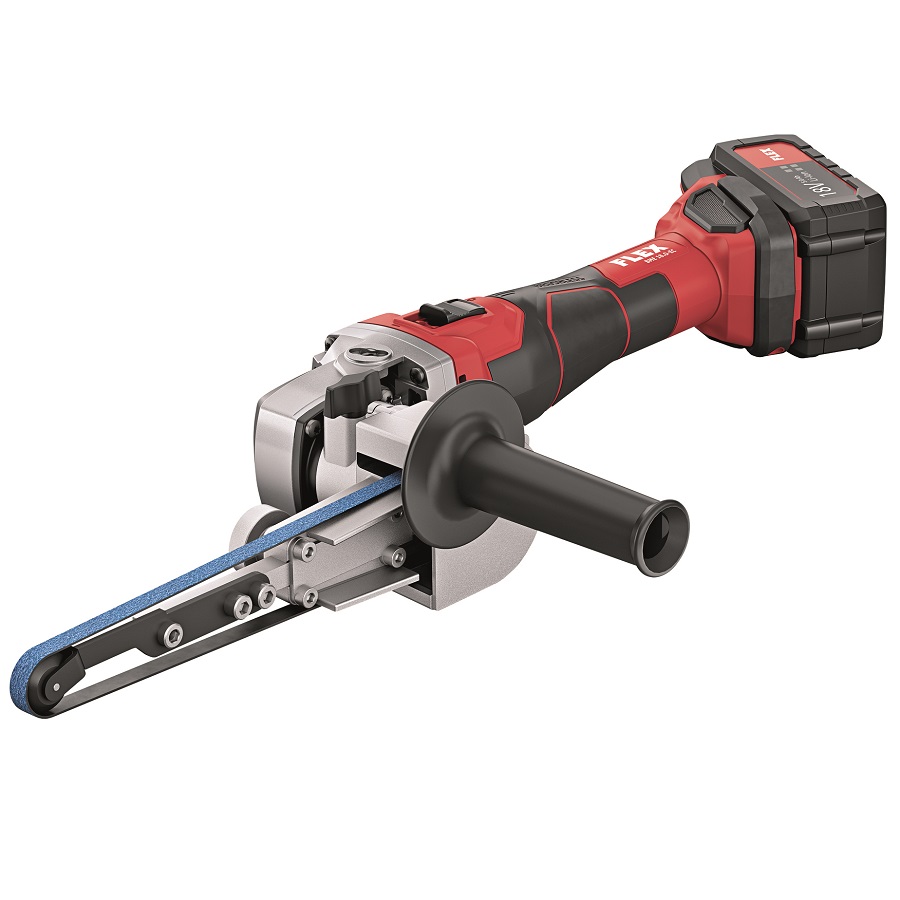

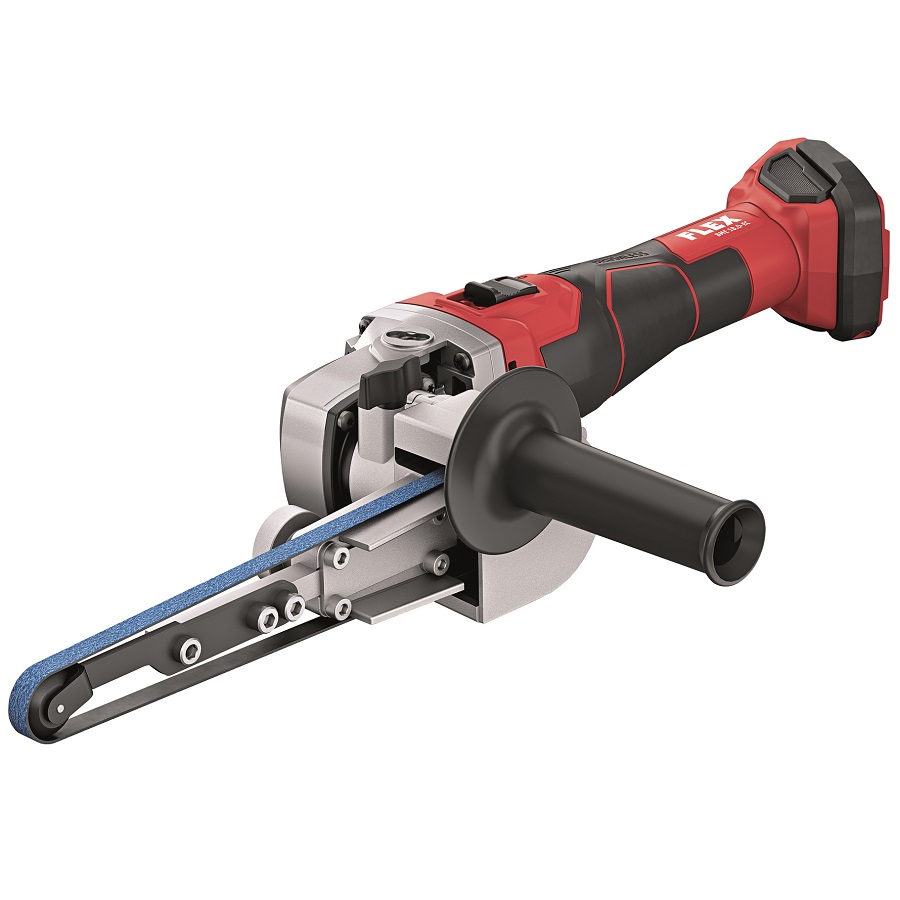

Flex FBE 30 18-EC C Cordless TrinoxFlex Belt File

Flex FBE 30 18-EC C Cordless Belt File

The Flex FBE 30 18-EC C Cordless TrinoxFlex Belt File is ideal for many different metal finishing tasks from weld cleaning to final finishing.  With a belt capacity of up to 30mm (arm dependant) and either 520 or 533mm belts.

Brushless variable speed motor with tachogenerator for constant speed, soft start & overload protection.

This machine is part of the TrinoxFlex range which is a modular system allowing you to change the purpose of the machine using the different modules available.

BR50 – Wraparound pipe sander head
LK152 – Fillet Weld grinder head
BS50 – Burnishing head

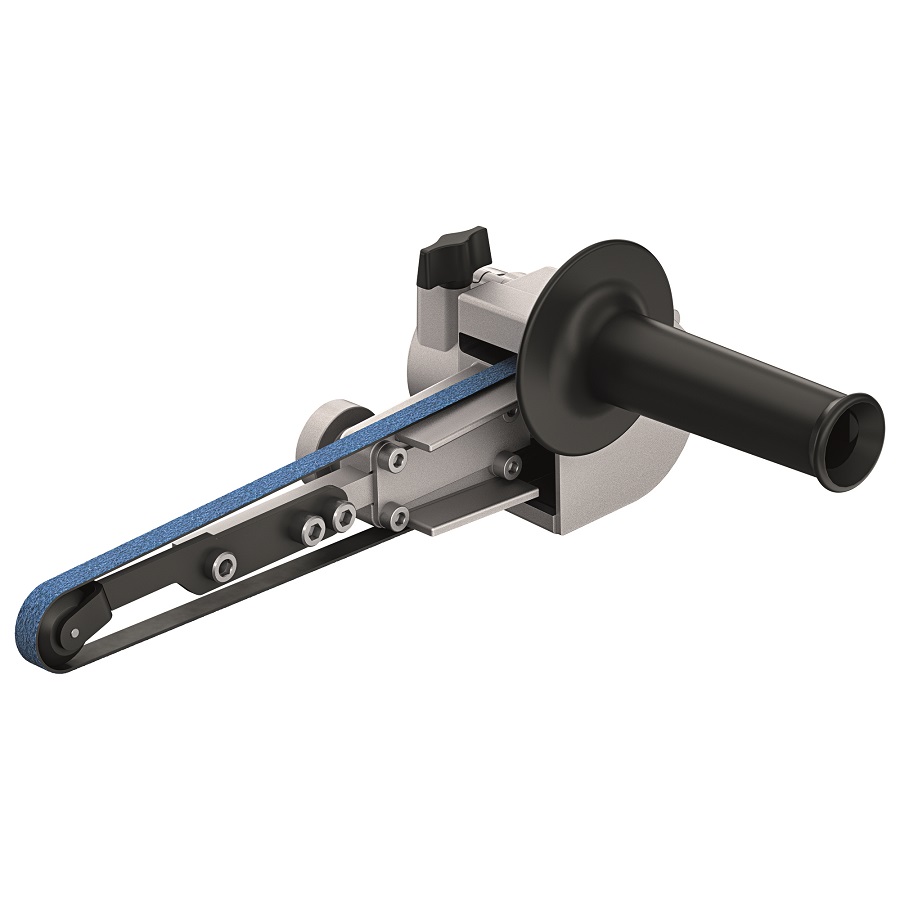

BF140 – Belt File Head

Scope of Supply
BME 18.0-EC C Motor
BF 140 Belt File Head
2 x 9x533mm Zirc 120 Grit Belts
2 x 9x533mm Zirc 60 Grit Belts

Please check availability and delivery time prior to ordering.

Flex 3 year warranty Flex FBE 30 18-EC C Cordless TrinoxFlex Belt File | EC Hopkins Limited

: £694.80 inc VAT
£630.00 inc VAT

Available on back-order

Technical Data
Battery Voltage 18.0v
Battery Capacity 2.5 / 5.0 / 8.0 Ah
Motor Brushless
Belt Length 520mm or 533 mm
Belt Width 4 – 30 mm
Processing Arm Length (approx) 120 mm
No Load Speed 1700, 2390, 3080 & 3760 rpm
Belt Speeds 3.5, 5.0, 6.4 & 7.8 m/sec
Weight Without Battery 2.6 Kg

Features

  • Brushless motor with greater efficiency and a longer service life
  • Microprocessor control: speed selection, tachogenerator constant speed control, soft start, restart protection after power failure, overload protection and temperature monitoring.
  • Sanding head: rotates through 140°.
  • For use with sanding arms in 9 mm or 30 mm
  • Sanding arm adjustable for 520 mm and 533 mm belt lengths
  • Processing length sanding arm up to approx. 12 cm
  • Sanding belt replacement: quick and tool-free
  • Perfect dust protection thanks to removable protective metal grille
  • Spindle lock
  • Electronic management system (EMS) protects the machine, extends the service life, and increases efficiency.
  • LED battery capacity display.
  • FLEX battery system: suitable for all FLEX 18 V battery packs.
  • Delivery does not include battery and charger.
  • Unique tool attachment with quick coupling for tool-free change of the four system attachments for satin finishing and pipe belt grinding, for grinding with a belt file or fillet weld grinder.
