Spitznas Hydraulic Reciprocating Saw RS14 512200050 51220010

The Spitznas RS14 hydraulic reciprocating saws (5 1220 0050) and (5 1220 0010) are hydraulically driven saw ideal for a wide range of applications including marine, nuclear and Atex.

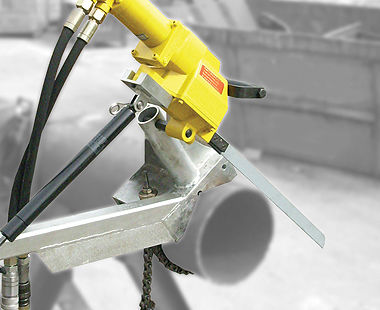

Ideal for cutting in confined spaces and can accommodate blades up to 37” (940mm) long. These hydraulic reciprocating saws need to be used with a pipe clamp, there is an optional saw blade guide available to increase blade stability plus there are manual and automatic pipe clamps. In addtion there are clamps for other profiles such as beams etc. There are 2 versions available one with a lever trigger 5 1220 0050 and another with the twist trigger 5 1220 0010.

The Sptiznas reciprocating saw requires a minimum hydraulic flow of 15 lpm to achieve correct performance of the saw. However, it can be connected to supplies of up to 50lpm as the tool has an in-built flow by-pass which will divert the excess oil back along the return line. A wide range of blade types are available to handle different types and thicknesses of material.

The Spitznas hydraulic reciprocating saws are Atex approved, with group I and II models available for zones 1 and zones 2 and have very low vibration and noise levels.

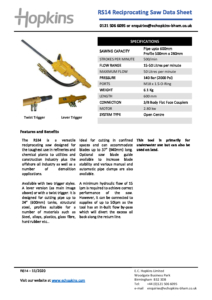

We also stock a range of blades for these reciprocating saw. Please see the list below in the download section. Please email or call with you enquiry and we will be able to advise you.

Part No. ATEX Specification Volume flow Actuation Power Stroke (free) Noise level LpA Vibration level Weight
l/min Kw rpm dB(A) m/s² kg
5 1220 0010 II2GExhIIBT5Gb 10-50 Twist throttle 2.8 300 <70.0 <2.5 10.5
5 1220 0050 II2GExhIIBT5Gb 10-50 Lever valve 2.8 300 <70.0 <2.5 10.5
5 1223 0010 IM2ExhIMbT5 20-50 Twist throttle 2.8 330 <70.0 <2.5 13.0
5 1223 0050 IM2ExhIMbT5 20-50 Lever valve 2.8 330 <70.0 <2.5 13.0


  • Safety lever trigger
  • Support Handle
  • Wide range of blades
  • ATEX Approved
  • Fitting for various clamp supports
