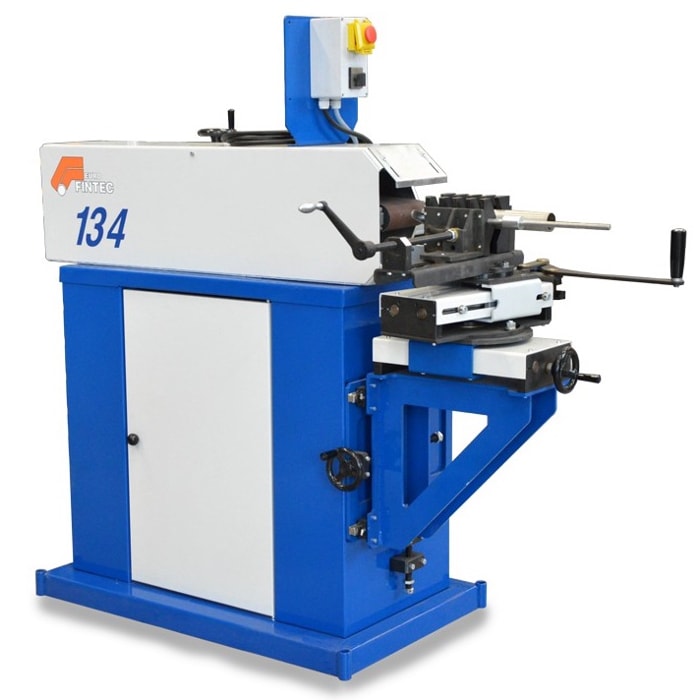

Gecam 134 Abrasive Tube Notching Machine

Gecam 134 abrasive tube notching machine for pipes and tube from 10 to 150mm diameter.

The Gecam Model 134 is a heavy-duty tube notcher for tubes up to 150mm diameter, making it ideal for small production jobs, bespoke balustrade right through to larger scale uses such as bike or roll cage production. The model 134 has numerous adjustments for making offset and angled notches a breeze. The machine has the capacity to cope with round pipes up to 150 mm and square pieces up to 150 x 150 mm with coupling angles from 15 ° to 90 °. The carriage is adjustable in all directions and is composed of a longitudinal positioning trolley, a transverse trolley to ensure gentle processing and the use of the entire width of the belt. A vertical adjustment is also used to allow the execution of even off set notches from the centre of the piece.

Weight 80 kg
Belt Size

150x2000mm

Tube Size

10 to 150mm

Voltage

415v

Power

3.4kW

Speed

1400 & 2800rpm

Dimensions mm - L x W x H

1000 X 1500 X 1500

Features

  • Capable of Notching Tube and Pipe from 10 – 150mm diameter.
  • Effective material removal in a short space of time.
  • Highly cost-effective as tooling such as millers or cutters not required.
  • Twin Speed optimal for metal working 1400 & 2800rpm.
  • Removable swarf collector
  • Connection for extraction available
  • Vice with quick clamping system for round pipes, square pipes and solid material.
