Fein AKBC36 MAGFORCE Cordless Compact Mag Drill
The Fein AKBC36 Cordless Compact Core Drill. Probably the smallest core drill on the market. Runs on the AMPShare Platform
The Fein AKBC36 Cordless Compact Mag Drill is extremely small and light variable speed mag drill with a core drilling performance characterised by high precision and quality. Tough enough for holes with diameters of up to 36 mm and extremely small at of only 169mm high, 356mm long (including battery)and only 8.5kg this is an extremely powerful small package. The AKBC36 is also reversible allowing for tapping up to M12.
Whether drilling at height or from the side, the AKBC36 is the drill for you. 8,000Nm holding force with an integrated tilt sensor and magnetic force indicator making sure that you are always in good position to drill. The ratchet lever operates from both sides making it a doddle to use in confined spaces
The AKBC36 has a high performance variable speed brushless motor that allows you to use it efficiently. The AKBC36 uses every bit of power when you need it, while reducing the need for ongoing maintenance by reducing the heat generated and working more efficiently.
A performance display shows the battery level, speed setting and drilling pressure. All relevant parameters are always clearly visible. Six LEDs display the current operating status of the active performance display in real time – ensuring maximum efficiency and a measurably longer service life for the annular cutter.

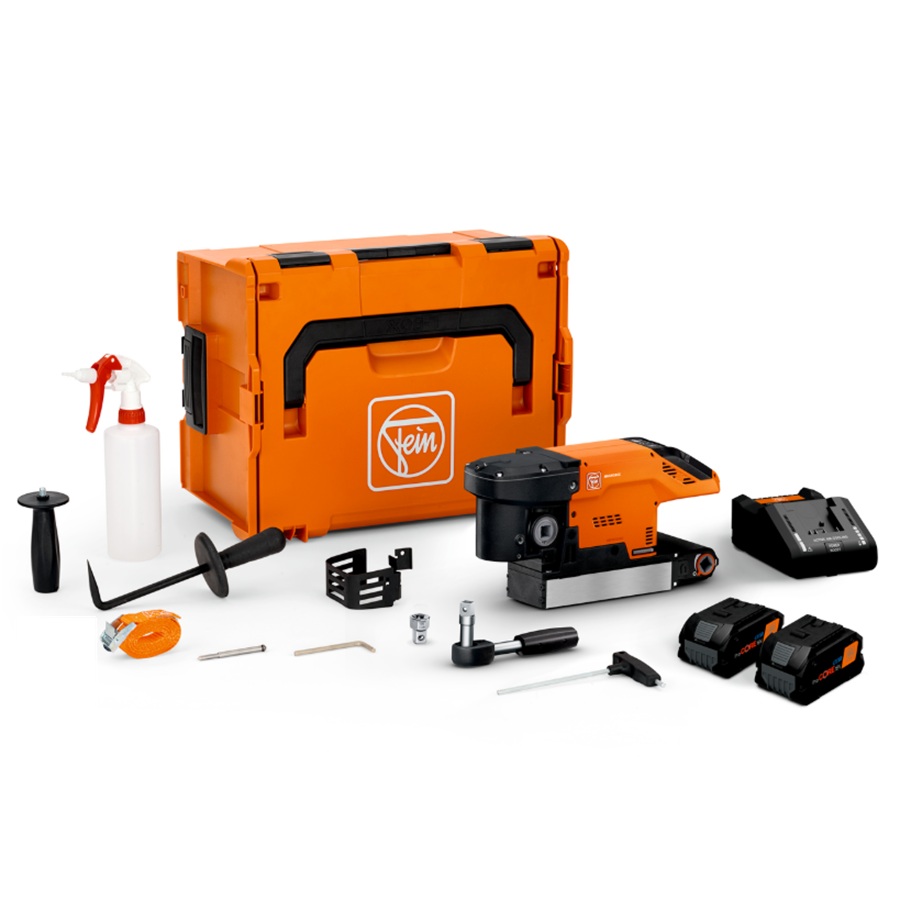

Supplied as machine only or with full set of batteries and charger.
Machine supplied with 3 year warranty
Enquire
Enquiry: Fein AKBC36 MAGFORCE Cordless Compact Mag Drill
| Â Cutter Capacity | Â 10 – 36 mm |
| Â Cutter Depth | Â 35 mm |
| Â Tapping Capacity | Â M12 |
| Â Power | Â 18v AMPShare |
| Â Speed (Full Load) | Â 165 – 610 rpm |
| Â Core bit holder | Â 3/4″ Weldon |
| Â Stroke | Â 46 mm |
| Â Magnetic holding force | Â Nm 8,000 |
| Â Magnet Footprint | Â 175 x 80 mm |
| Â Size: H x L | Â 169 mm x 356 mm |
| Â Weight (without Battery) | Â 8.5 kg |
Features
- Compact: With a height of only 169 mm, a length of 356 mm and a weight of 8.5 kg, it is ideal for confined working areas – even overhead and vertically.
- Productive: Up to 25% faster work progress and longer battery life. With an 18 V ProCORE 8.0 Ah battery, up to 35 holes can be drilled per battery charge (HM ULTRA Ø 18 mm, S235 12 mm).
- Powerful: High-performance brushless motor with electronic speed control – ideal for core, spiral, thread and countersink drilling.
- Very safe: Permanent magnet with 8,000 N holding force, LED display for magnetic holding force and drilling pressure, and tilt sensor with automatic motor stop.
- Maintenance-free spindle feed ensures high concentricity.
- Fine adjustment of the permanent magnet for precise alignment at the drilling point.
- Can be used in thin sheet metal from 6 mm material thickness with reduced magnetic holding force.
- High gearbox positioning for optimum view of the drilling point.
- Drive shaft combines a 1/2-inch square drive and an 8 mm hex socket.
- 1/2 in adapter with SW19 hexagon for activating the magnet in tight or deep installation positions with open-end, box-end or socket wrenches.
- Compatible with Bosch Professional 18 V batteries since 2008 as well as with AMPShare and EXPERT batteries (8.0 Ah).
