Aceti Art 83 Edge Chamfering and Belt Linishing Machine

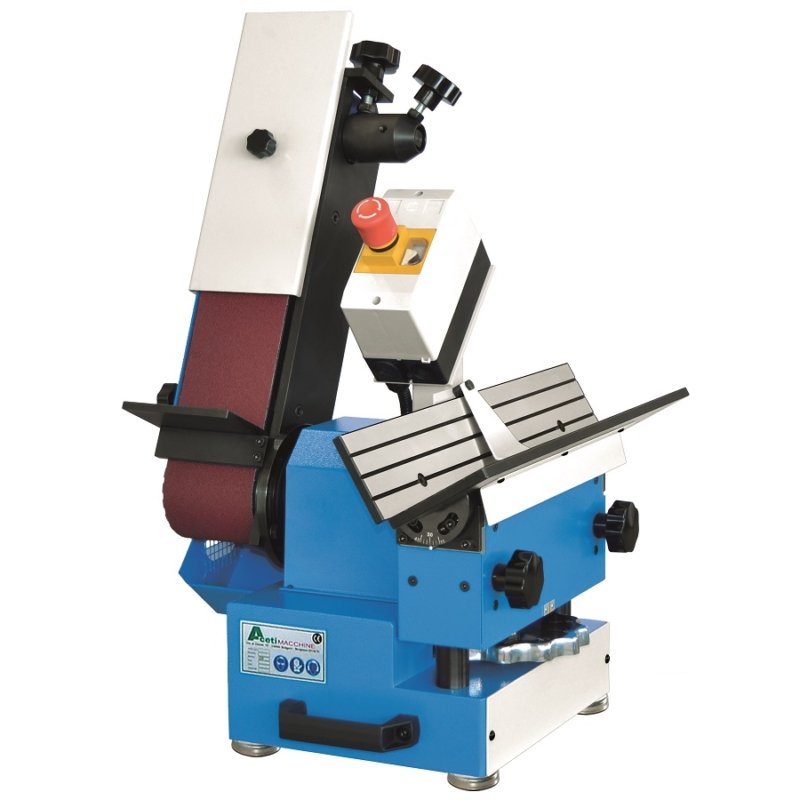

The Aceti Art 83 edge chamfering and belt linishing machine.

The Art 83 is a bench mount machine with both belt and chamfer attachments.

The chamfering is done using a cutter with 10 indexable tips. With a capacity to handle plate of many different thicknesses due to the open feed channel. The unit has variable angles of cut from – 15 to 45 degrees. The Art 83 will cut chamfers of up to 6mm and also radii of between 2 and 5 mm with the appropriate cutters fitted.

The belt grinder arm is indexable to allow for the positioning of the belt giving you the best set up for your work. The serrated contact wheel and flat platen are both accessible for grinding.

Options include cabinet stand and inbuilt dust extraction.

Aceti machines are some of the most robust machines on the market.

Model Art 83
Voltage 415 v
Power 1.1  kW
Belt Size (max) 100 x 1000 mm
Speed 2800 rpm
Chamfer size 0 – 6 mm
Chamfer Angle 15 – 45 degrees
Weight kg 47
Dimensions (cm) 73 x 50 x 68
