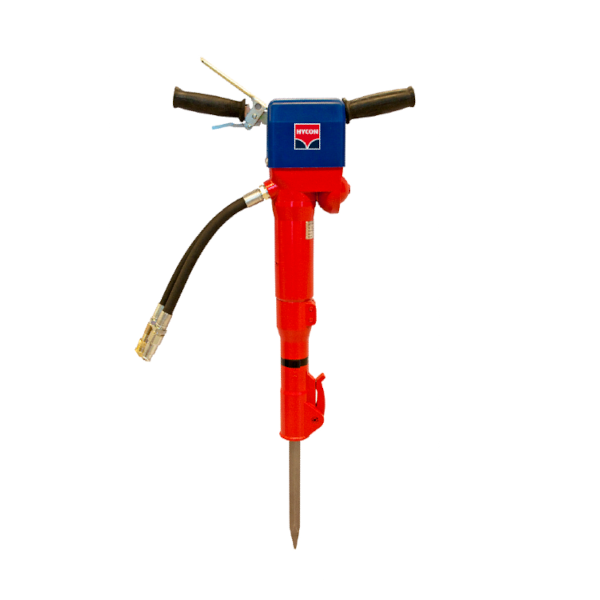

Hycon HH23 Hydraulic Breaker
The Hycon HH23 hydraulic breaker is a compact and sturdy breaker with 40% higher performance than HH20. It is designed for tough jobs in hard concrete, asphalt, ramming, etc.
It comes as standard with the HYCON vibration-reduced handle. It is available both as 20 and 30 l.p.m. models. HH23 is especially used by contractors, the military, asphalt companies and utilities companies. The Hycon HH23 hydraulic breaker can be connected to the HPP-series and other hydraulic power sources. Other tool sizes are available on request.
The standard tool size is Hex 25×108 mm.
We also can supply spares parts for the whole range of Hycon breaker as well as all the other Hycon hydraulic tool and power pack range.
£1,692.00 inc VAT
Enquiry: Hycon HH23 Hydraulic Breaker
Hycon Handheld Breaker Specifications:
|Oil Flow (l.p.m):||20||20||20||20||20/30||20/30||30||30/40|
|Working Pressure (bar):||100||100||110||110||120||120||130||130|
|Max. Pressure (bar):||160||160||160||160||160||160||160||160|
|Blow Frequency (1/min):||2100||1830||1560||1560||1380||1380||1260||1100/1440|
|Blow Energy (J):||22||40||60||60||85/95||85/95||105||130|
|Noise Level (dB A):||105||105||106||106||108||108||110||111|
|Vibration Level (m/s²):||9.6||6.6||6.8||4.8||8||9.4||10.7||10.7|
The Hycon Handheld Hydraulic Breaker is a range of compact high-performance breakers which are capable of handling the toughest of jobs, despite their low weight. Their sturdy and compact design hits harder than any other breaker on the market with the same weight. Designed for their use with tough materials like strong concrete, asphalt and frozen ground, while being capable of much more. All Hycon Handheld Breakers ensure the comfort for the operator due to the standardized Hycon PROLINE vibration-reduced handles. The reliability and supreme build quality of the Hycon Handheld series means longer service life, under extreme working conditions.
- Safety Trigger
- Ergonomically designed rubber handles
- Anti-Vibration handles comes standard for operator comfort
- Long service life due to excellent build quality and component sealing
- Accumulator can be serviced from the outside
