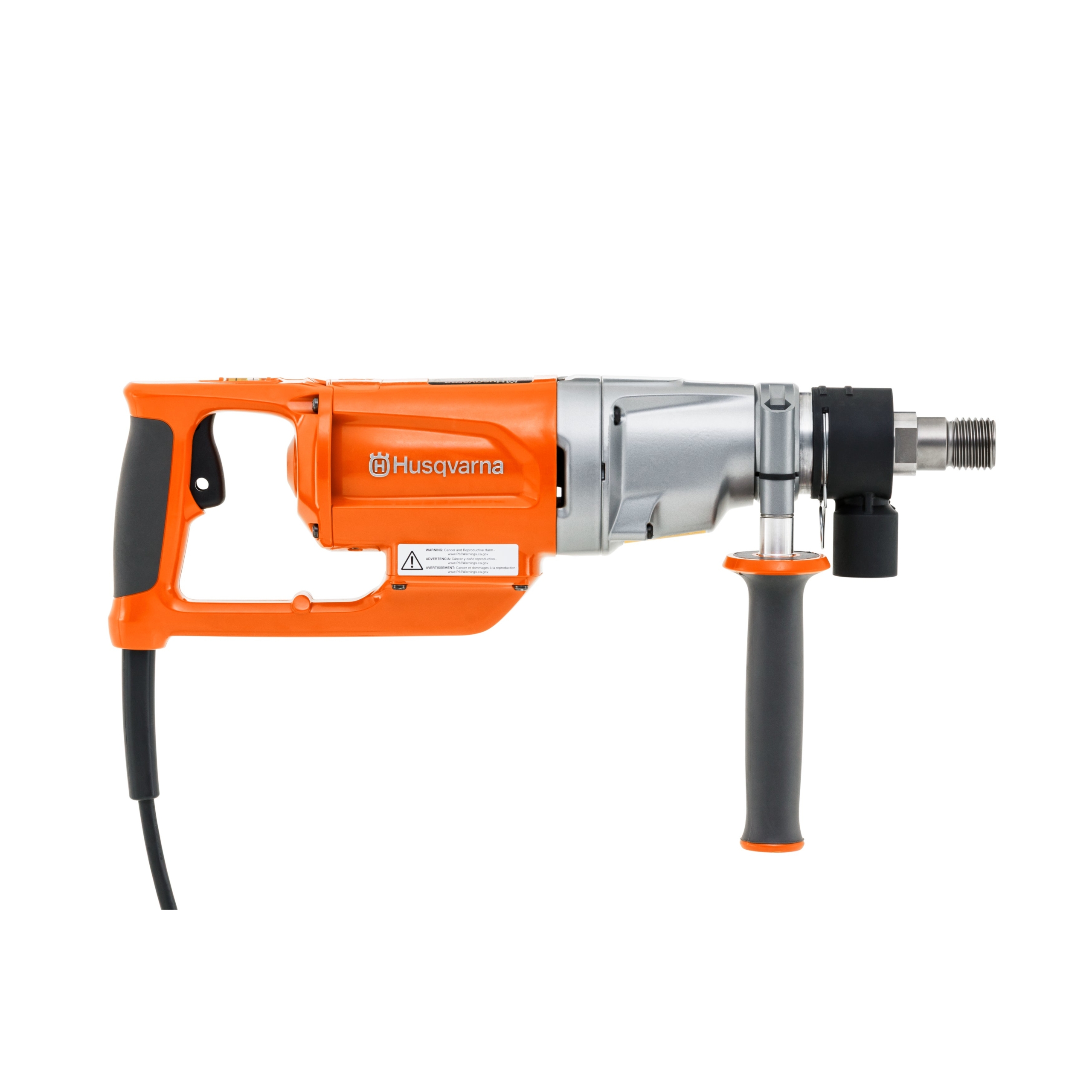

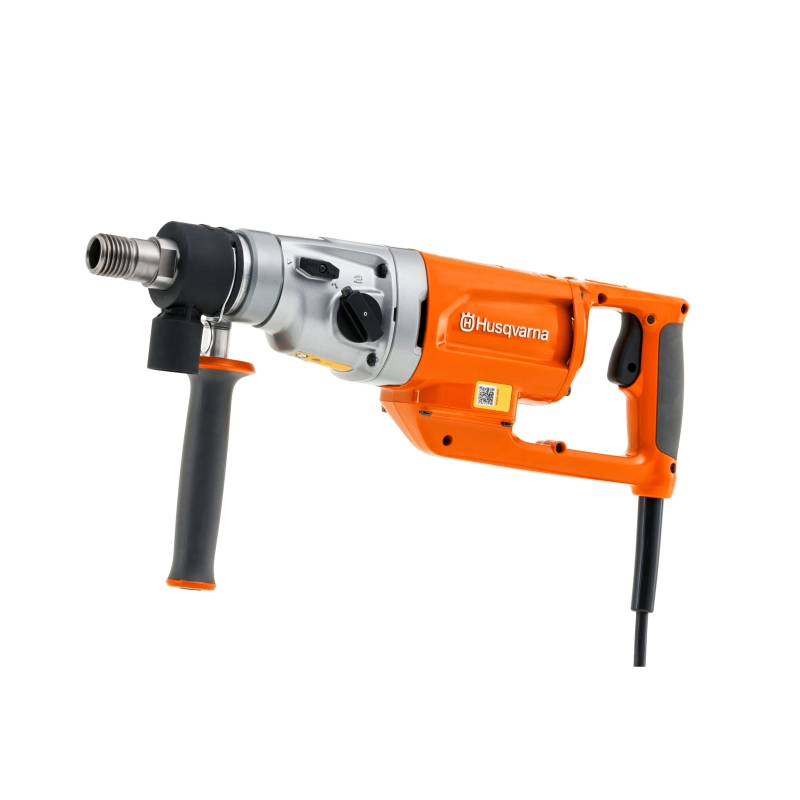

Husqvarna DM210P Dry Core Drill Motor
The Husqvarna DM210P dry core drill motor for drilling either hand held or stand mounted.
The Husqvarna DM210P is a powerful electric core drill with soft-percussion technology for dry drilling in reinforced concrete and other hard materials. DM 210 SP features an ergonomically designed D handle that provides excellent control for handheld drilling (the drill can also be mounted on a drill stand). The drill’s versatility makes it an ideal partner for both professionals and semi-professionals.
Suitable for light applications such as ventilation, plumbing pipes, electrical sockets and cables in environments where drilling with water is not an option.
Suitable for abrasive concrete, masonry and also reinforced concrete. Dust extraction is required when dry coring.
When dry core drilling in reinforced concrete, always use a core drill bit that is specifically intended for dry applications. This will ensure proper dust extraction and keep your tube and segments from overheating.
On any construction site, proper dust management is essential for minimising the crew’s exposure to silica dust. It’s also important for the performance of your equipment because it helps prevent your core bit from overheating.
Enquiry: Husqvarna DM210P Dry Core Drill Motor
| Specification | Husqvarna DM210P (DM 210 SP) |
|---|---|
| Product Type | Electric diamond core drill motor (dry drilling) |
| Power Source | Corded electric |
| Rated Input Power | 2.0 kW |
| Weight | 6.5 kg |
| Drilling Method | Dry core drilling with soft-percussion technology |
| Suitable Materials | Reinforced concrete, concrete, masonry, stone |
| Gearbox Speeds | 2-speed gearbox |
| Unloaded Speed 1 | 2,100 rpm |
| Unloaded Speed 2 | 2,800 rpm |
| Maximum Handheld Core Bit Diameter | 100 mm |
| Maximum Rig-Mounted Core Bit Diameter | 150 mm |
| Recommended Core Bit Diameter Range | 25–100 mm |
| Spindle Connection | 1¼” UNC Male |
| Voltage Options | 110 V / 220–240 V variants available |
| Frequency | 50–60 Hz |
| Cooling Method | Dry drilling (no water required) |
| Overload Protection | Elgard™ electronic overload protection |
| Soft Start | Softstart™ electronic current limiter |
| Dimensions (L × H × W) | 514 × 274 × 111 mm |
| Typical Applications | Ventilation holes, plumbing pipes, conduit penetrations, electrical sockets and cable installations |
| Mounting Options | Handheld or drill stand mounted |
Features
- 110v Or 230v Models
- Easy Start – reduced speed for lower vibration
- Overload Protection – with automatic shutdown to prevent overheating
- Ergonomic Handle
- Drill Up To Ø 150mm
Dry core drilling is often preferred when:
- Water cannot be used.
- Working inside finished buildings.
- Electrical installations are nearby.
- Clean working conditions are required.
- Fast setup is important.
- Using handheld drill motors.
Need to know more about our Husqvarna DM210P Dry Core Drill Motor?
Give us a call on +44 121 506 6095 or drop us an email to enquiries@echopkins.com
Alternatively you can request a callback below, fill out the form and we'll be in touch as soon as possible.
You may also like…
-
Husqvarna DE35 H HEPA Wet / Dry Vacuum 110v Electric
£870.25 inc VAT Add to basket -

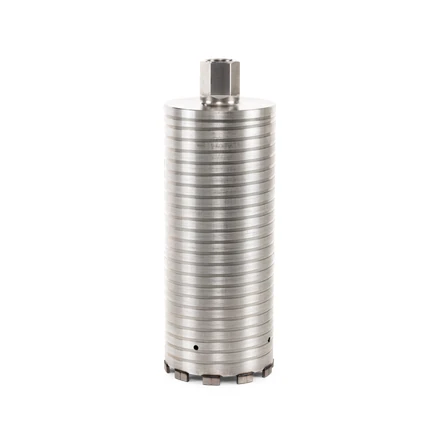

Husqvarna Dry Core Bit Elite D20
