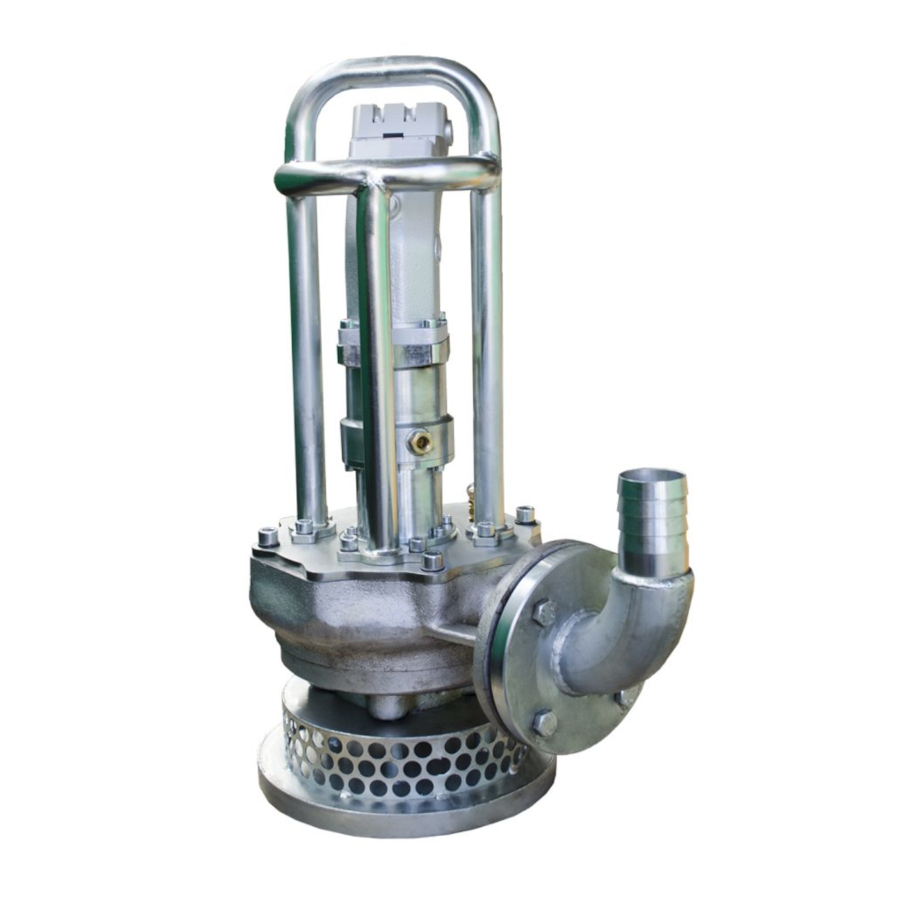

Spitznas 711060010 Sump Pump

The high conveyor rate is one of the highlights of this hydraulic sump pump. The pump is designed for relatively clean fluids, e.g. water and cooling agents (no grinding liquids). The minimum immersion depth is 240 mm. The pump can be immerged fully into the medium to be pumped and can be used as well in explosive secured areas. It is ATEX approved and has 2″ delivery outlet producing 1300 litre per  minute.

ATEX Specification IM2ExhIMbT3 / II2GExhIIBT3Gb
Energy source Hydraulic
Operating pressure 250 bar
Pumping capacity at a height of 10 m 80.0 m³/h
Max. pumping head 45.0 m
Delivery outlet DN50-PN10/ nozzle dia. 52 mm/inch
Volume flow 30 l/min
Height 665 mm
Length 290 mm
Width 495 mm
Hydraulic connection 3/4-16UNF-2B
Noise level LpA <70.0 dB(A)
Weight 53.0 kg
Fields of application / branch Energy and pipeline construction; Plant and mechanical construction; Underwater Work
