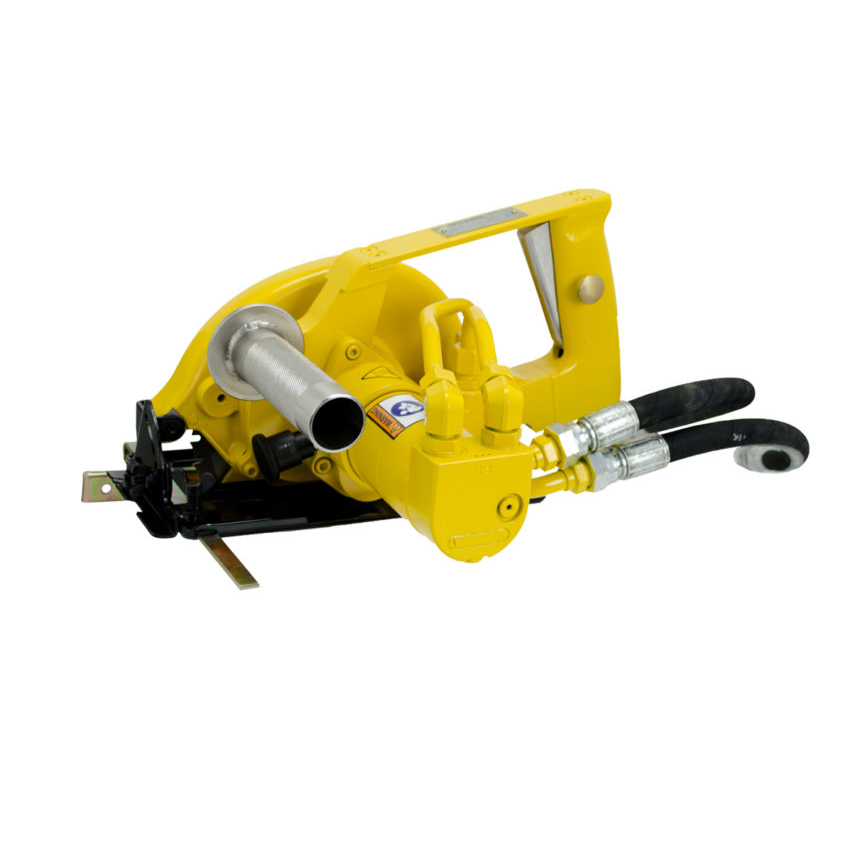

Spitznas 511280010 Hydraulic Circular Saw

The Spitznas 511280010 hydraulic circular saw for universal use, as well for underwater use.

The powerful Spitznas 511280010 hydraulic circular saw is used in steel construction, in foundries and for underwater operations as well. Metal sheets, plates, profiles and steel beams can be cut.

For cutting

  • Cast iron, steel, stainless steel
  • Non-ferrous metal
  • Plastics
  • Composite material

ATEX Specification II2GExhIIBT5Gb
Energy source Hydraulic
Operating pressure 140 Bar
Volume flow 20 l/min
Power 2.3
Max. saw blade dia. 180.00 mm
Speed (free) 3.200 rpm
Cutting depth at 90°/45° 60.0/35.0 mm
Center dia. for saw blade 16.0/19.0/20.0/30.0 mm
Weight 10.2 kg


  • Powerful hydraulic motor 2.3 kW
  • Max. cutting depth 60 mm
  • Saw blade dia. 180 mm
  • Comfortable handling
  • Compact design
  • Powerful
  • Optimum handling
  • Ideal for underwater operation
