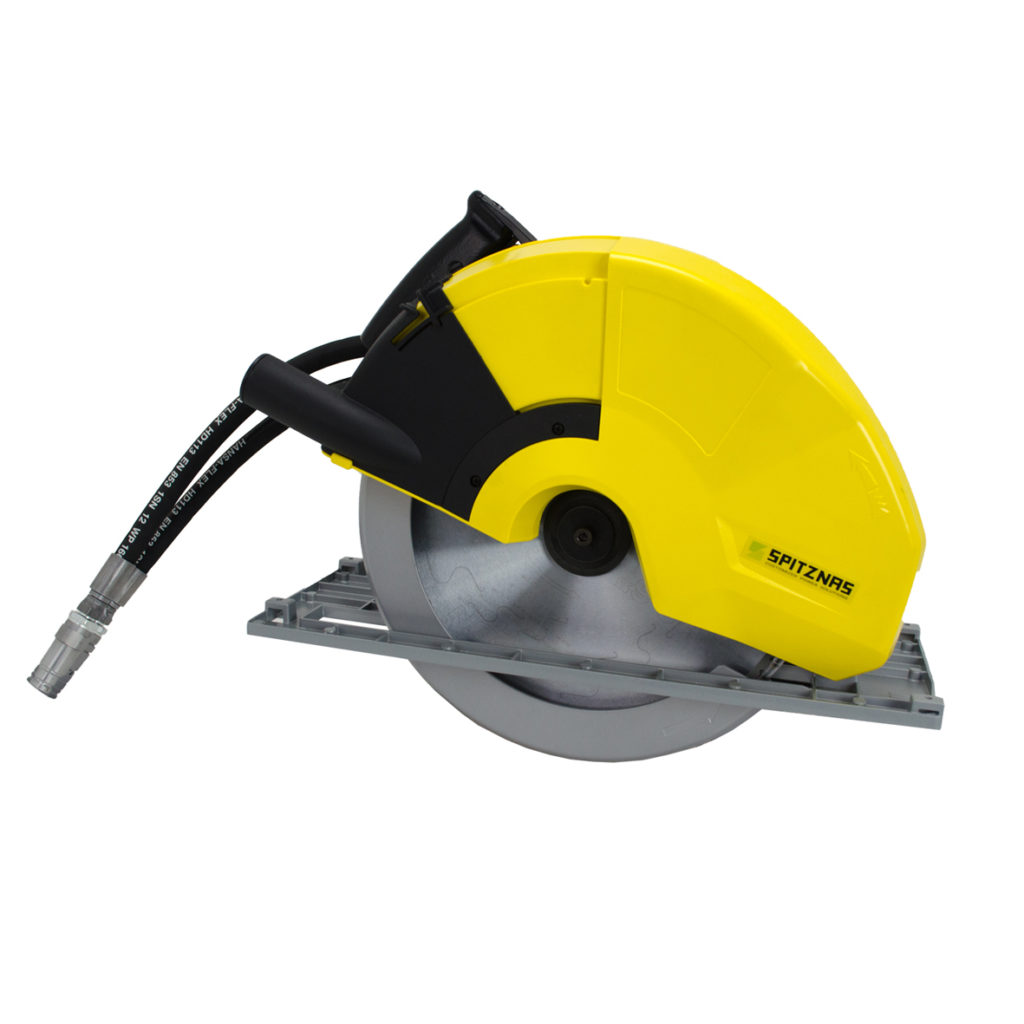

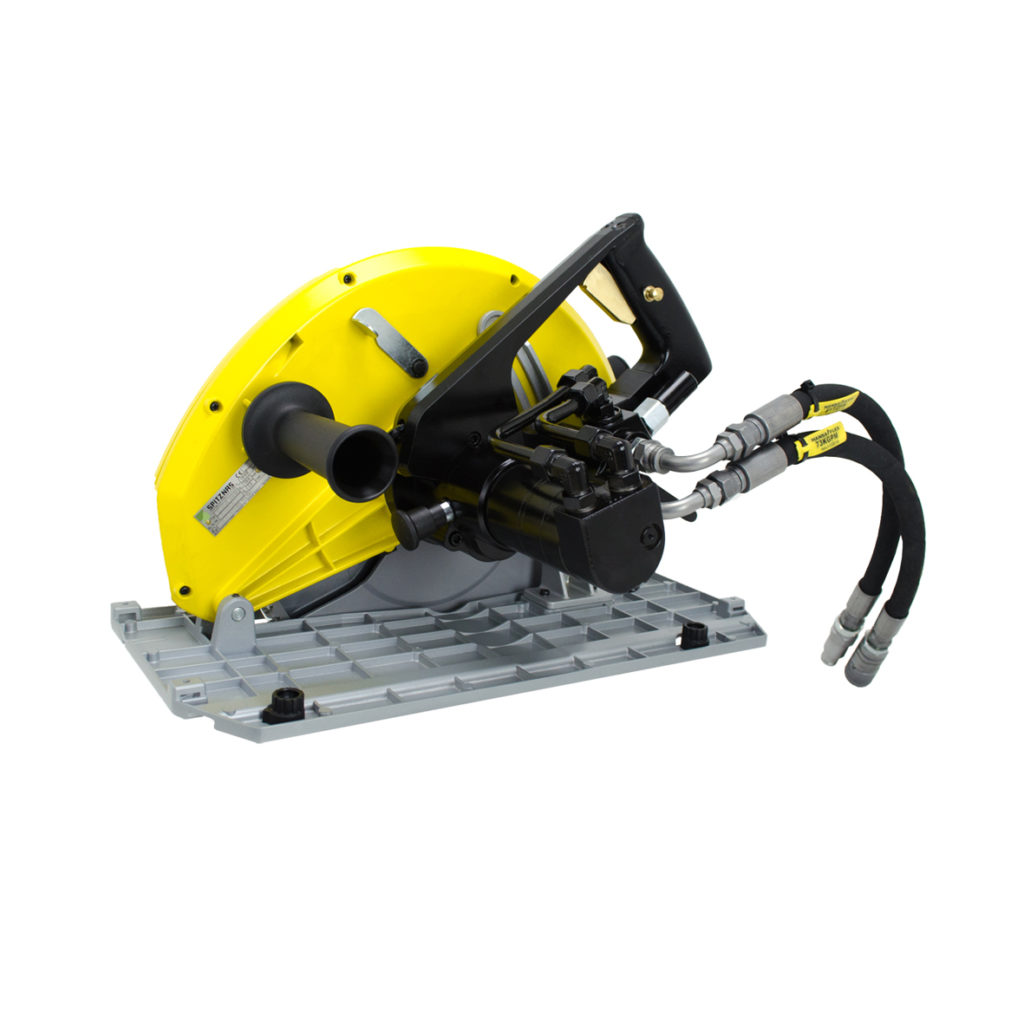

Spitznas Hydraulic Circular Saw 511270010
The Spitznas Hydraulic Circular Saw 511270010 for universal use, including thick wall plastic pipe and in explosive atmosphere areas.
The powerful Spitznas hydraulic Circular Saw 511270010 is used in steel construction, in foundries . With the ability to cut metal sheets, plates, profiles and steel beams and pipe.

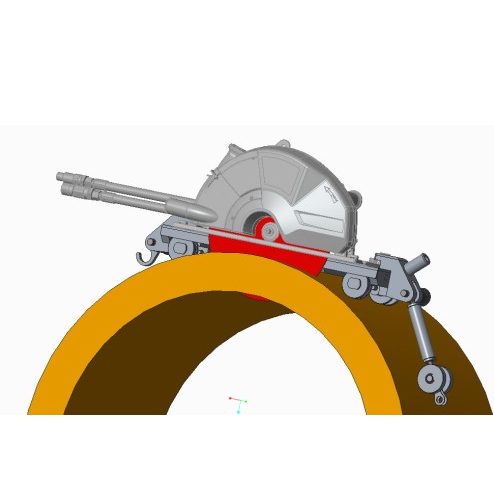

This unit can be used in conjuction with the Spiznas modular pipe cutting system for large diameter plastic, inc thick wall HDPE pipe. For pipe from 600mm upto 1000mm diameter and wall thickness upto 88mm. Making it suitable for a wide range of SDR pipe including SDR17, SDR13, SDR11 and even SDR9.
For cutting
- Cast iron, steel, stainless steel
- Non-ferrous metal
- Plastics
- Composite material
Contact us to discuss your requirements.
Enquiry: Spitznas Hydraulic Circular Saw 511270010
| ATEX Specification | II2GExhIIBT5Gb |
| Energy source | Hydraulic |
| Operating pressure | 140-180 bar |
| Hydraulic Flow | 20-23 lpm |
| Power | 2.3 Kw |
| Max. saw blade dia. | 320 mm |
| Speed (free) | 1,800 rpm |
| Cutting depth at 90°/45° | 120 mm |
| Center dia. for saw blade | 25.4 mm |
| Weight | 10.2 kg |
Features
- Powerful hydraulic motor 2.3 kW
- Max. cutting depth 60 mm
- Saw blade dia. 180 mm
- Comfortable handling
- Compact design
- Powerful
- Optimum handling
- Ideal for underwater operation
Need to know more about our Spitznas Hydraulic Circular Saw 511270010?
Give us a call on +44 121 506 6095 or drop us an email to enquiries@echopkins.com
Alternatively you can request a callback below, fill out the form and we'll be in touch as soon as possible.
