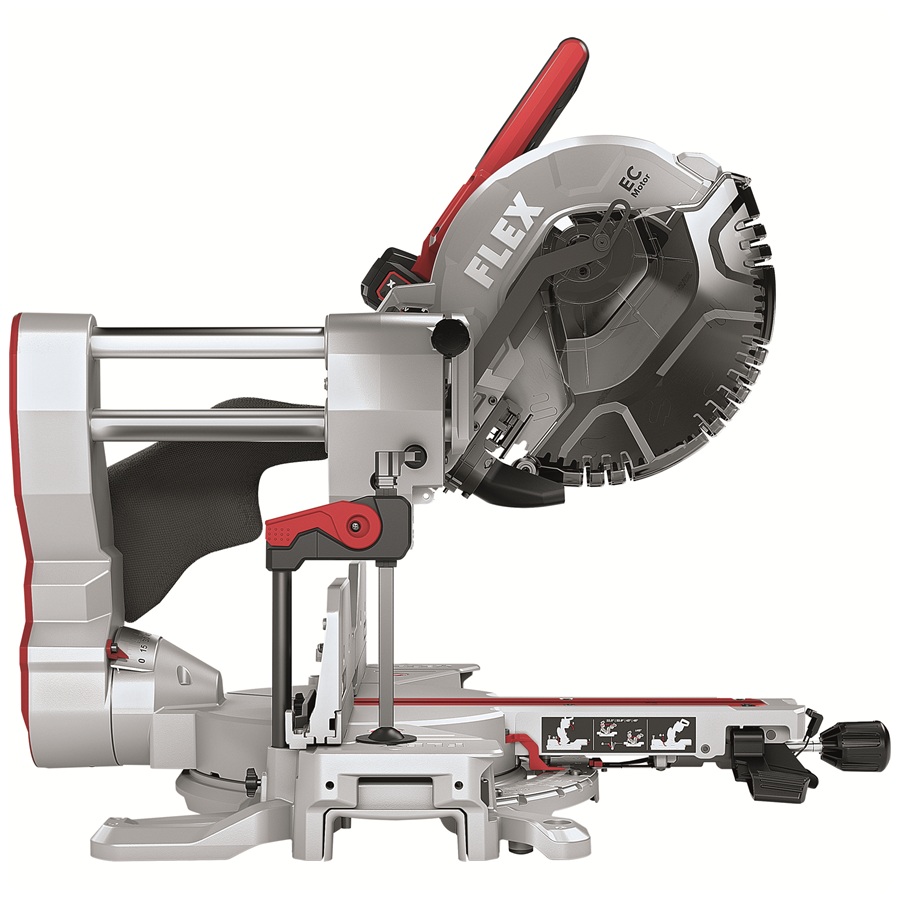

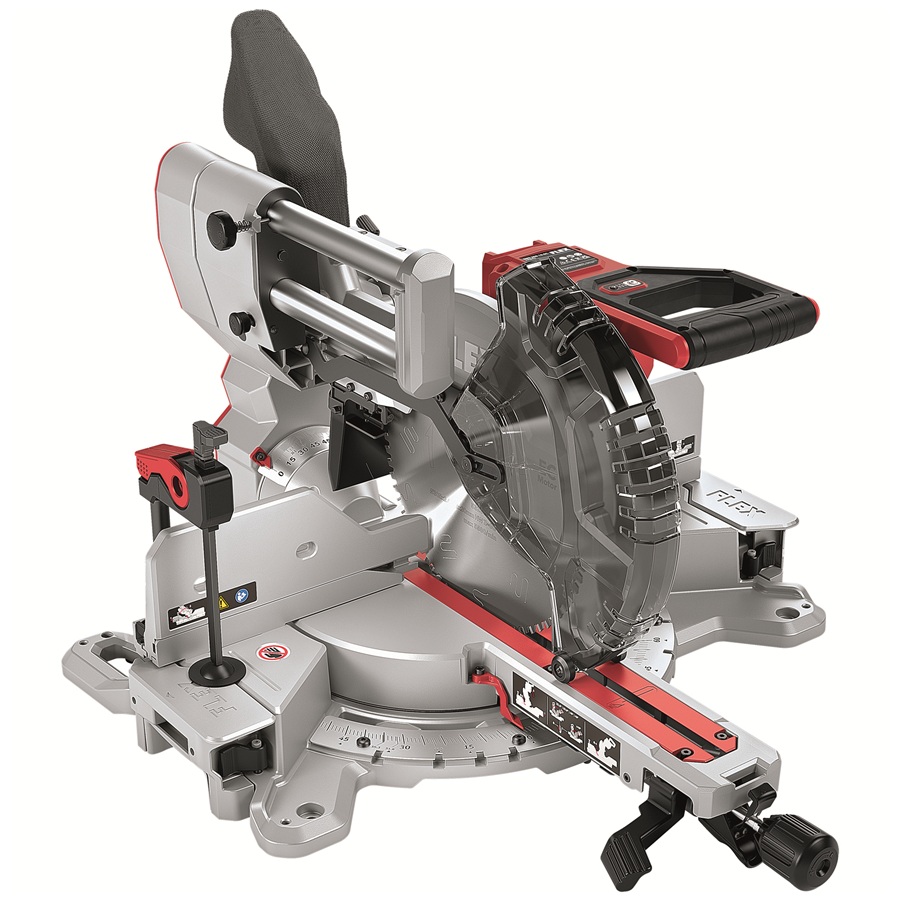

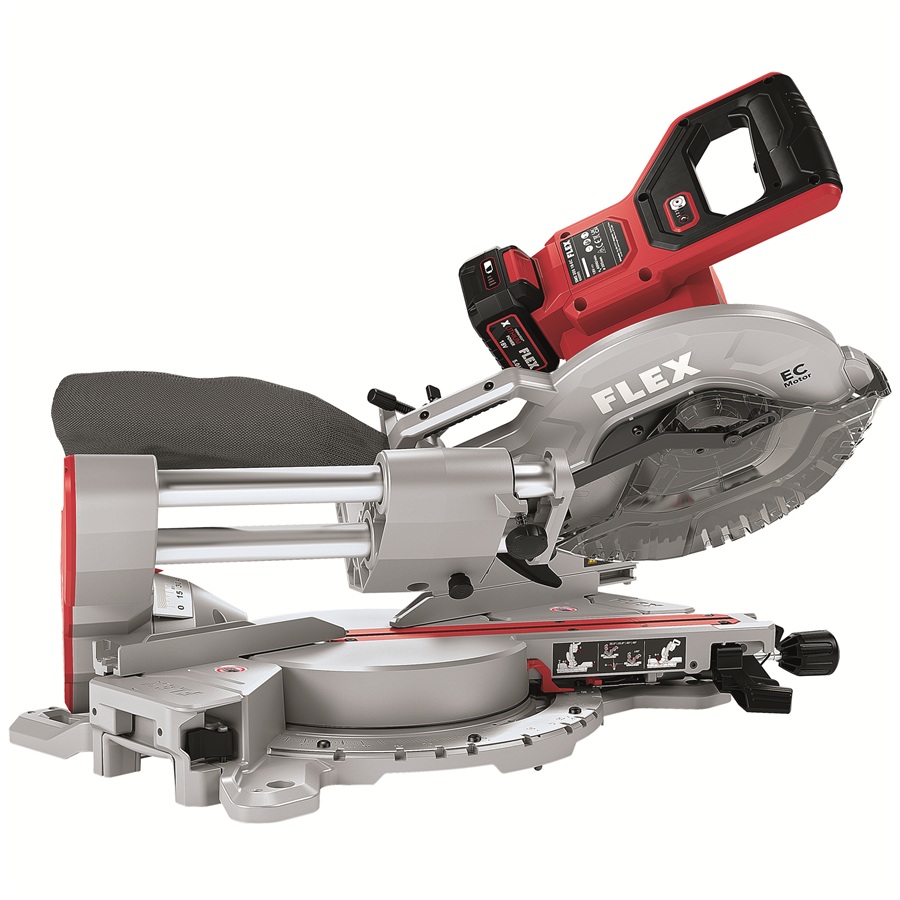

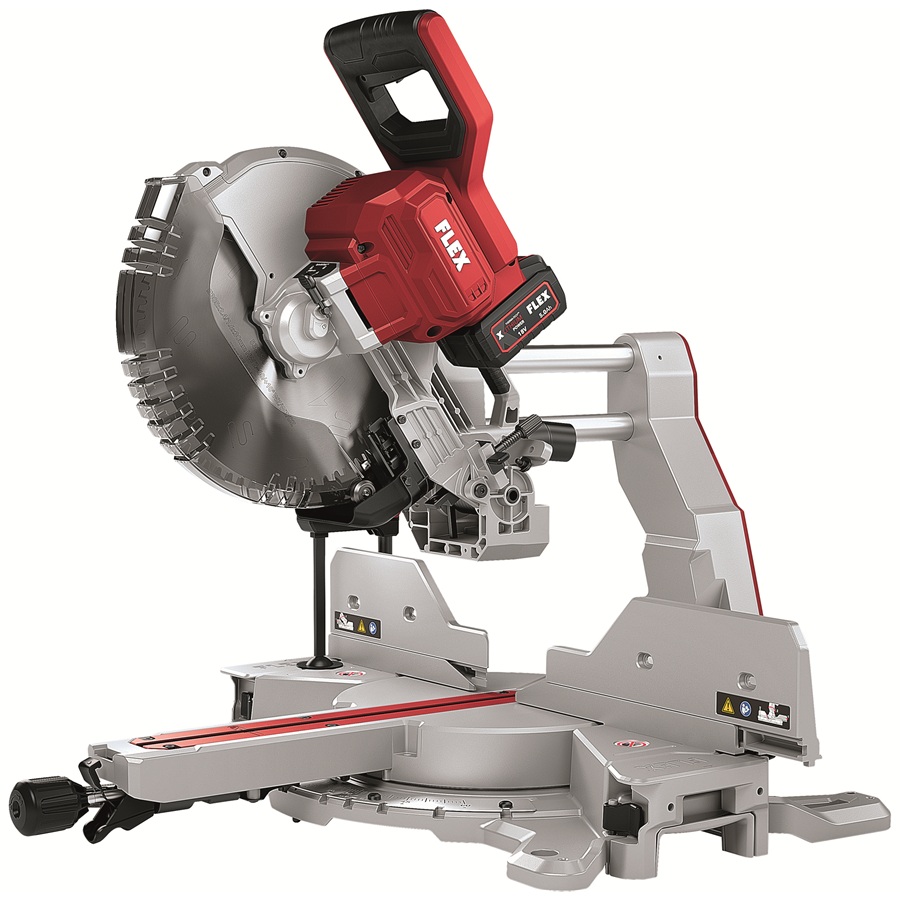

Flex SMS 305 18.0 EC Cordless Compound Mitre Saw
Flex Cordless Compound Mitre Saw.

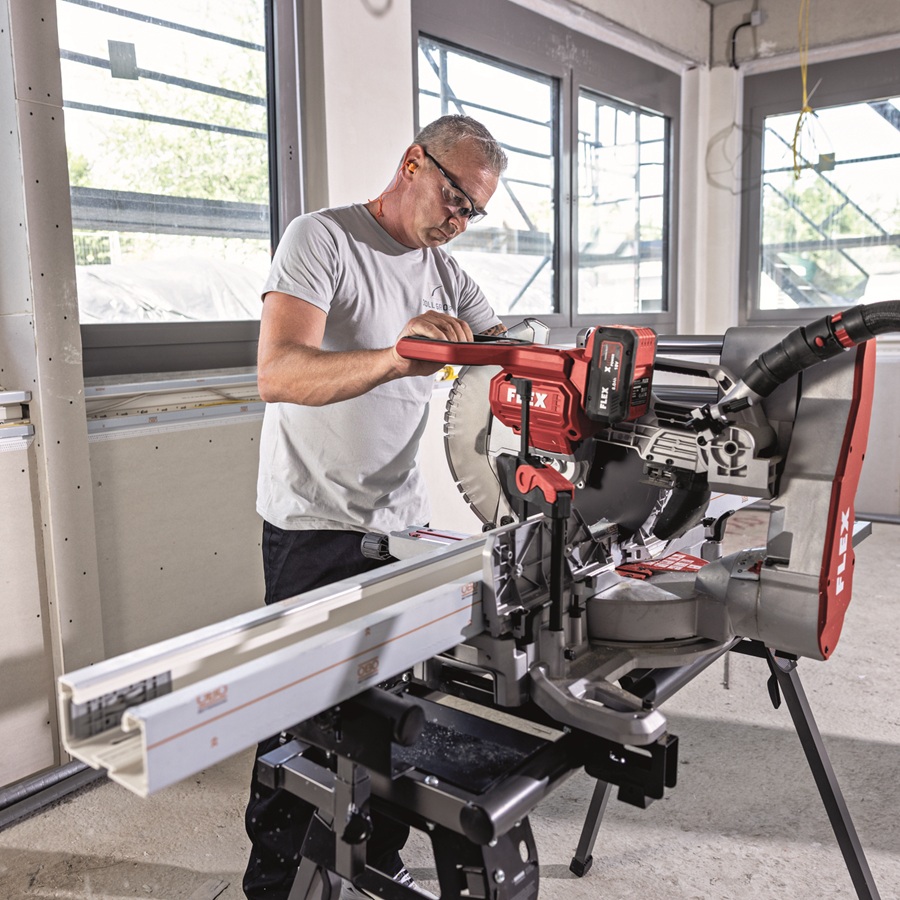

The Flex SMS 190 18.0-EC Cordless Compound Mitre Saw Set including base Frame is ideal for carpentry, flooring and framing use. This 18v cordless saw for portable and semi stationary use delivers quick solutions on the construction site. Ideal for building substructures or wooden stud walls in drywall construction. Laminate, wood panelling, skirting, architrave or parquet can also be cut easily and safely, but with high precision.
Laser cut angular scale of 52° left/right with angle pre-adjustments of 0-15°, 22.5°, 31.6°, 45° / 0°, 15°, 22.5°, 31.6°, 45° & 60°. Easy to read and with precision adjustment thanks to the self explanatory operating elements. Swivel segment 48° left/right. With 0°, 22.5°, 33.9°, 45° L/R angle stopper for undercuts, angular cuts and shifter cuts.
Available as a Saw only (no batteries or charger)
Free 5.0 Ah Battery when registered for Flex Warranty – Here
Please check availability and delivery time prior to ordering.
Enquiry: Flex SMS 305 18.0 EC Cordless Compound Mitre Saw
| Technical Data | |
| Battery Voltage | 18.0v |
| Battery Capacity | 2.5 / 5.0 / 8.0 Ah |
| Max no-load speed | 1900 / 2600 / 4000 rpm |
| Mitre setting Left / Right | 52° /60° |
| Inclination setting Left / Right | 48° /48° |
| Cutting Depths, cross-cut mode | |
| 90°/90° – 101 mm | 45°/90° – 101 mm |
| 90°/45° right – 38 mm | 45°/45° – 38 mm |
| 90°/45° left – 69mm | |
| Cutting Widths, cross-cut mode | |
| 90°/90° – 330 mm | 45°/90° – 252 mm |
| 90°/45° – 252 mm | 45°/45° – 252 mm |
| Saw blade diameter | 305 mm |
| Saw blade bore | 30 mm |
| Dimensions W x L x H | 813 x 684 x 750 mm |
| Weight without battery pack | 25 kg |
Features
- Precise cutting results for the construction of wooden post and beam structures, substructures for drywall construction, laying laminate/parquet flooring as well as wood panelling, cover strips

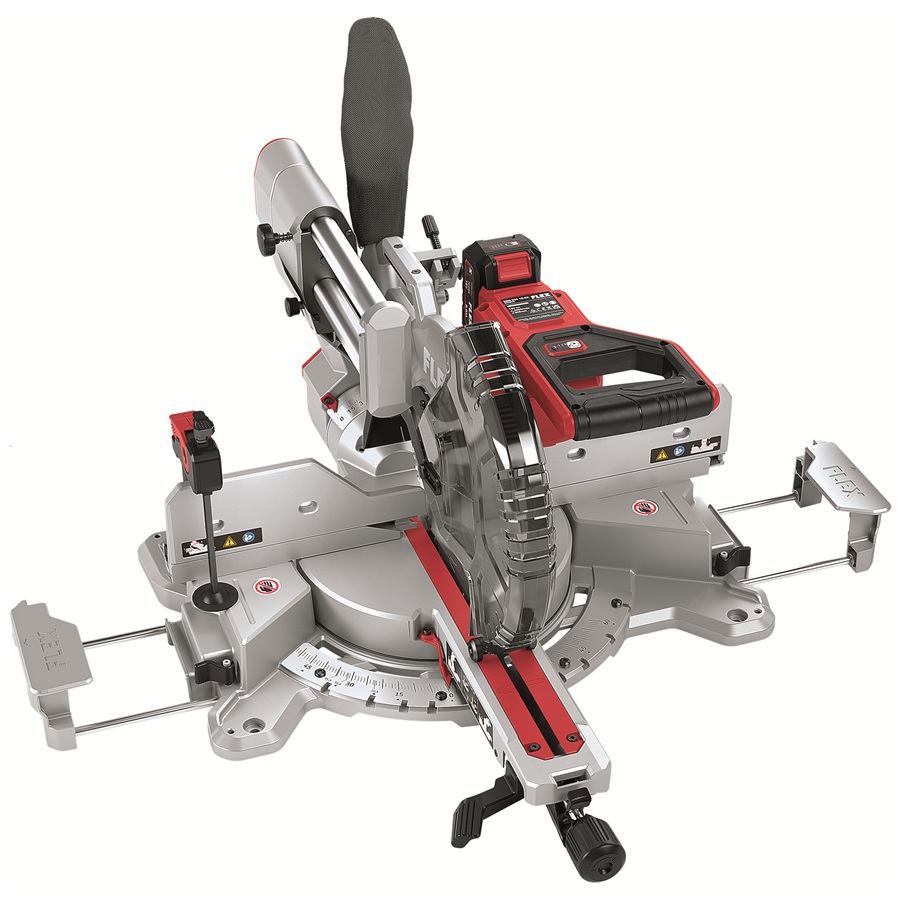

- Powerful and precise cordless mitre saw with high cutting capacity: 101 x 330 mm and 92 x 356 mm. The table extensions on both sides support handling of longer workpieces
- 18 V EC motor with overload protection and temperature monitoring
- Brushless motor with greater efficiency and a longer service life
- Laser-cut angular scale of 52° left/60° right. With angle pre-adjustment of 0°,15°, 22,5°, 31,6°, 45° l / 0°, 15°, 22,5°, 31,6°, 45°, 60° r. Easy to read and with precision adjustment thanks to self-explanatory operating elements

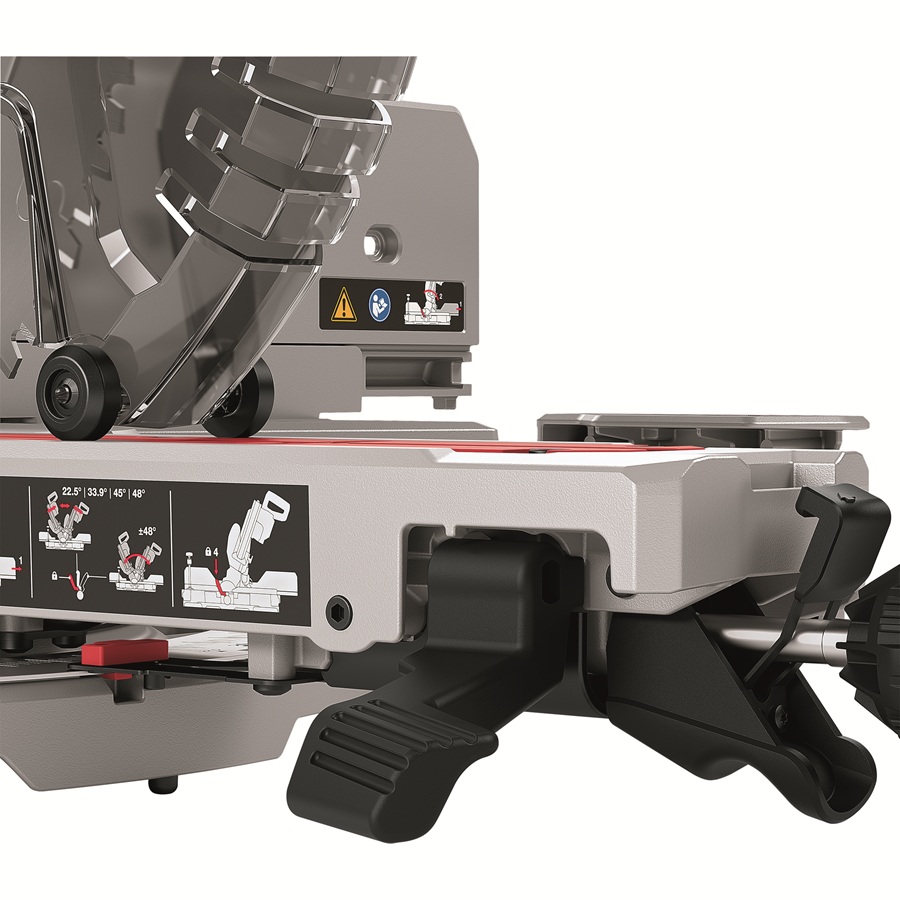

- Swivel segment up to 48° left/right With 0°, 22,5°, 33,9°, 45° l/r angle stopper for undercuts, angular cuts and schifter cuts
- Quick-action clamping holder for secure fixing of the workpiece on the saw table

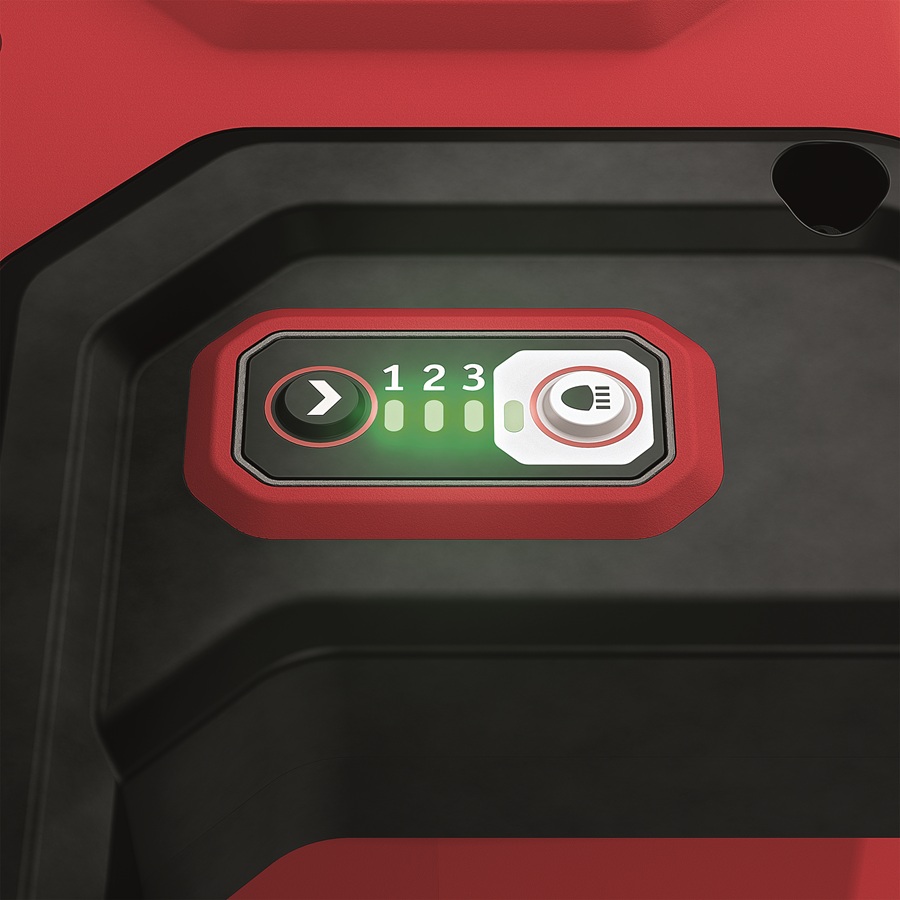

- Variable speed in 3 stages perfectly matched to the different materials. The set speed preselection is adopted as a constant speed. The result is better cutting quality and a longer saw blade service life
- LED light with cutting line indicator for easy positioning of the workpiece

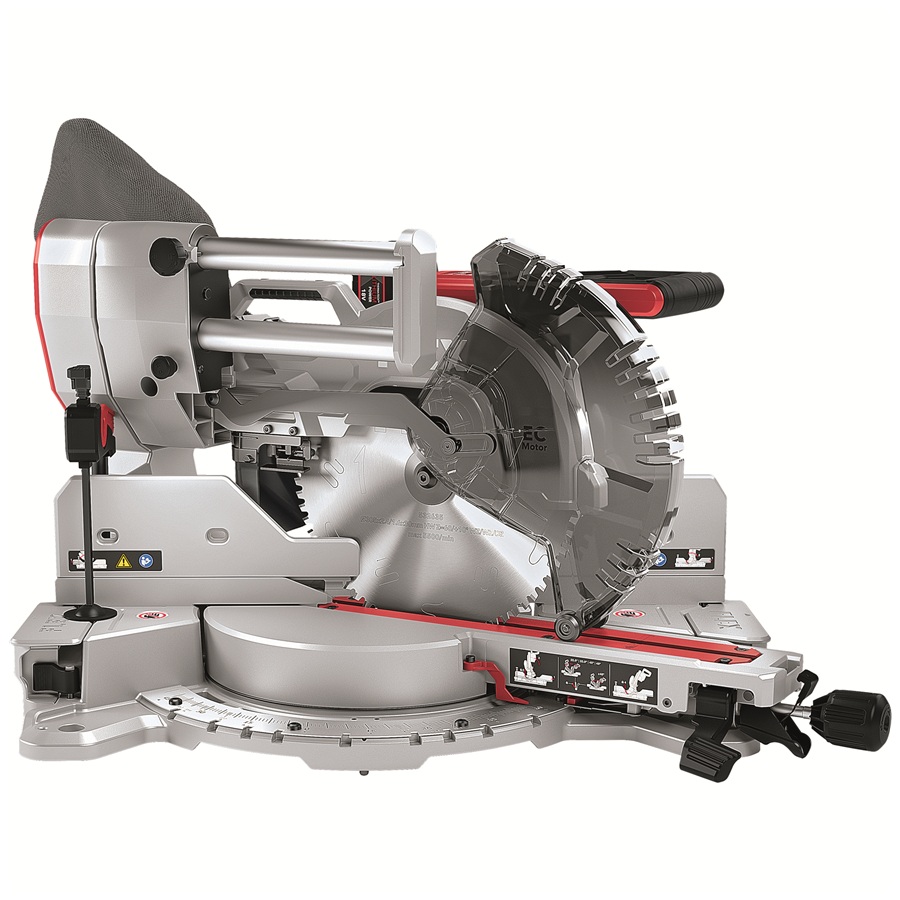

- Very comfortable, compact and lightweight. The guide tubes only protrude forwards, allowing you to work close to the wall and making transport easy.With transport lock and pull catch

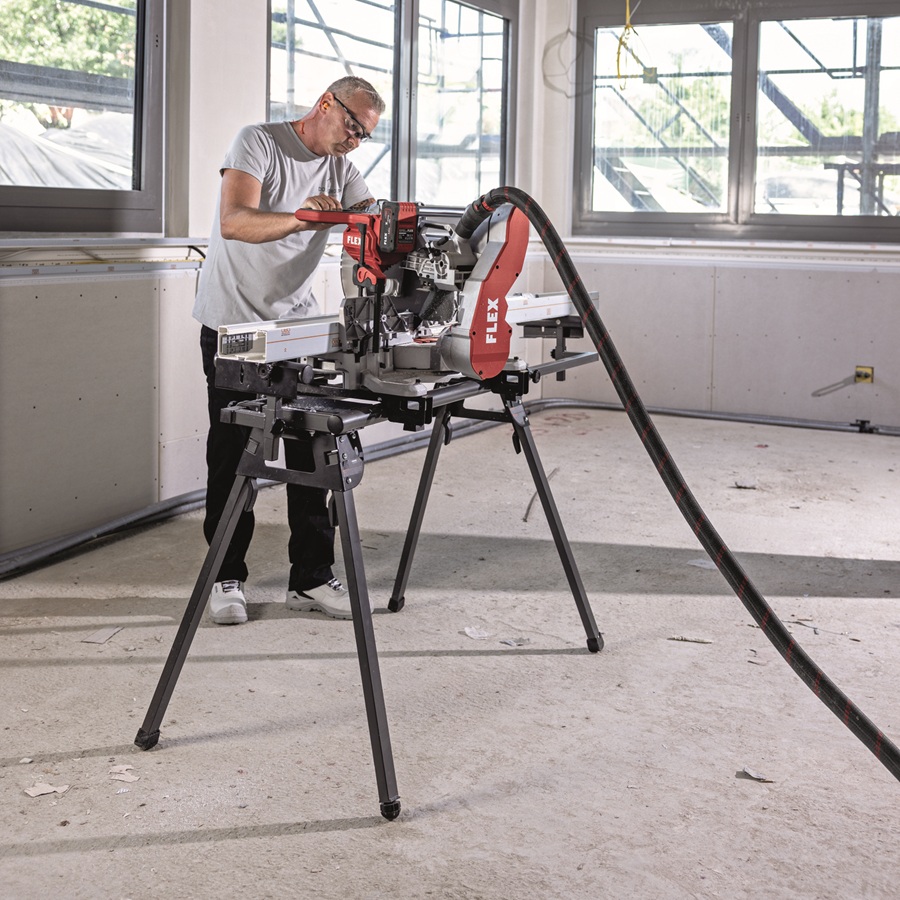

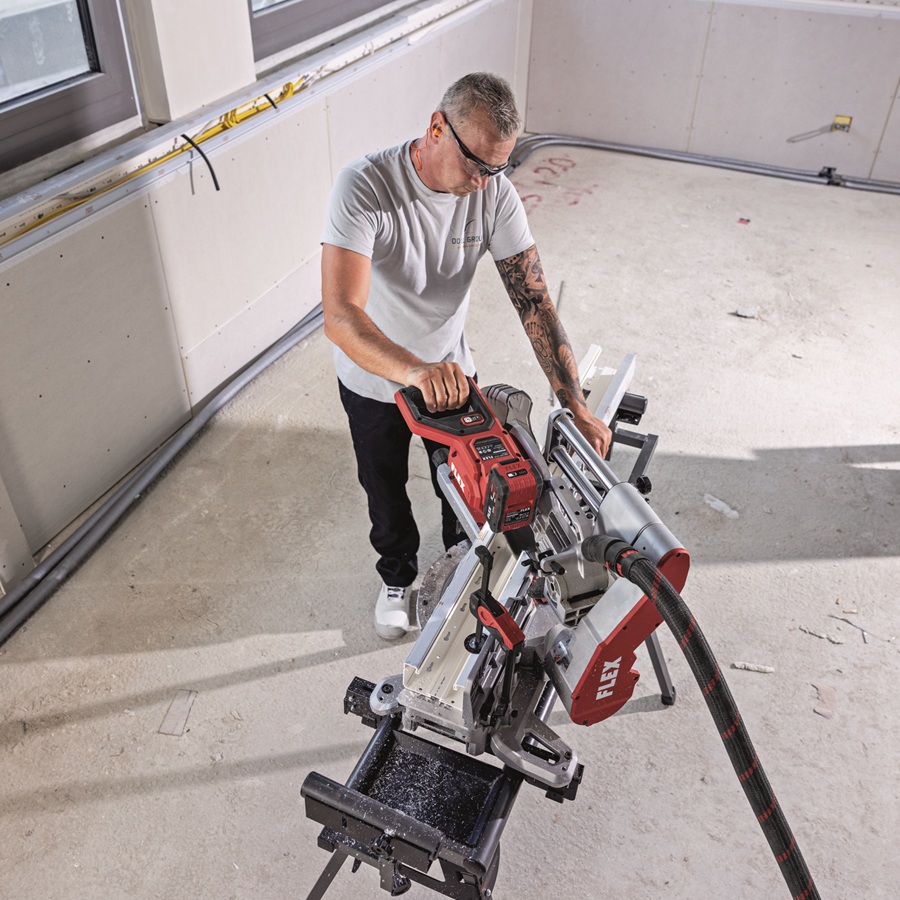

- For maximum mobility on the construction site. Can be fixed to the folding base frame WB 110-260 without tools (optionally available as an accessory)

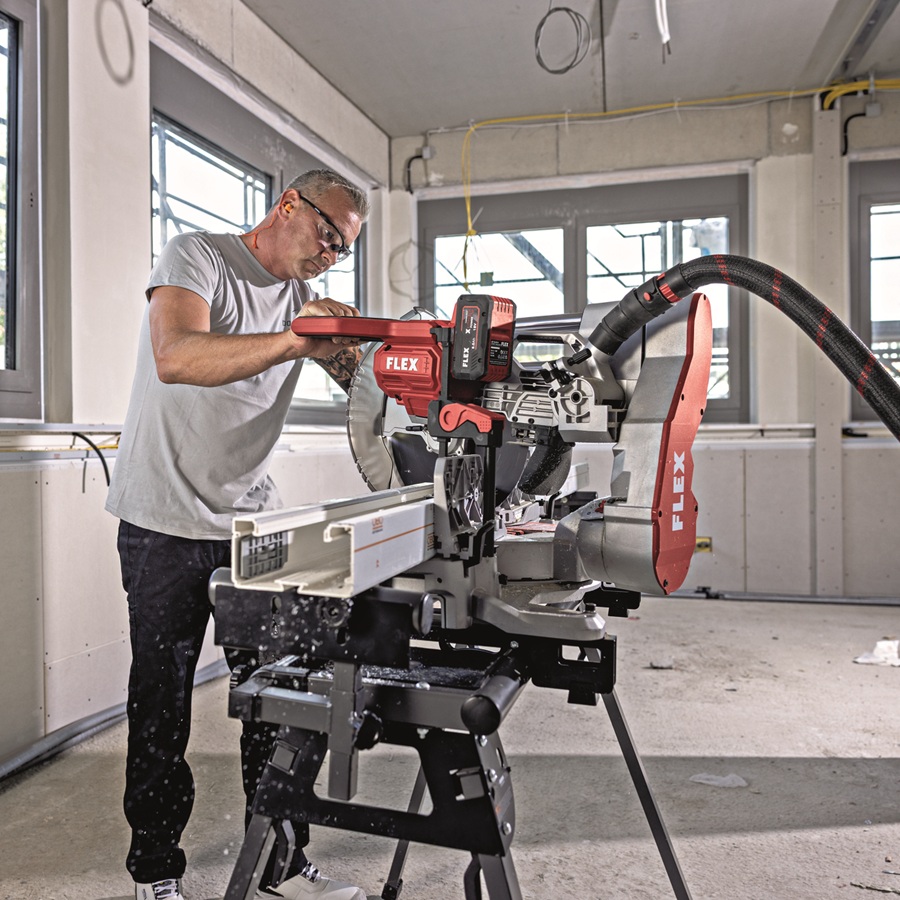

- Connector for external dust extraction Ø 27, 36 mm
- Woodshaving collection bag for low-dust operation, simple to empty

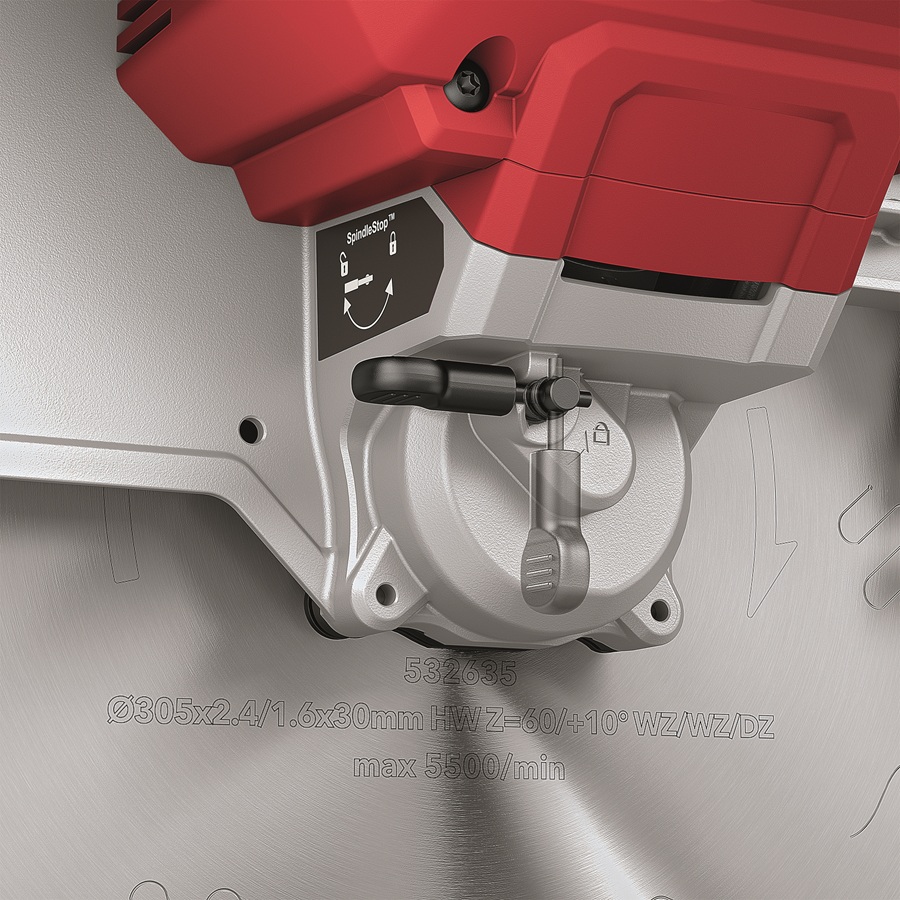

- Spindle lock: for quick replacement of blades
- Electronic management system (EMS) protects the machine, extends the service life, and increases efficiency
b LED battery capacity display - FLEX battery system: suitable for all FLEX 18 V battery packs.
- Delivery does not include battery and charger
Need to know more about our Flex SMS 305 18.0 EC Cordless Compound Mitre Saw?
Give us a call on +44 121 506 6095 or drop us an email to enquiries@echopkins.com
Alternatively you can request a callback below, fill out the form and we'll be in touch as soon as possible.
