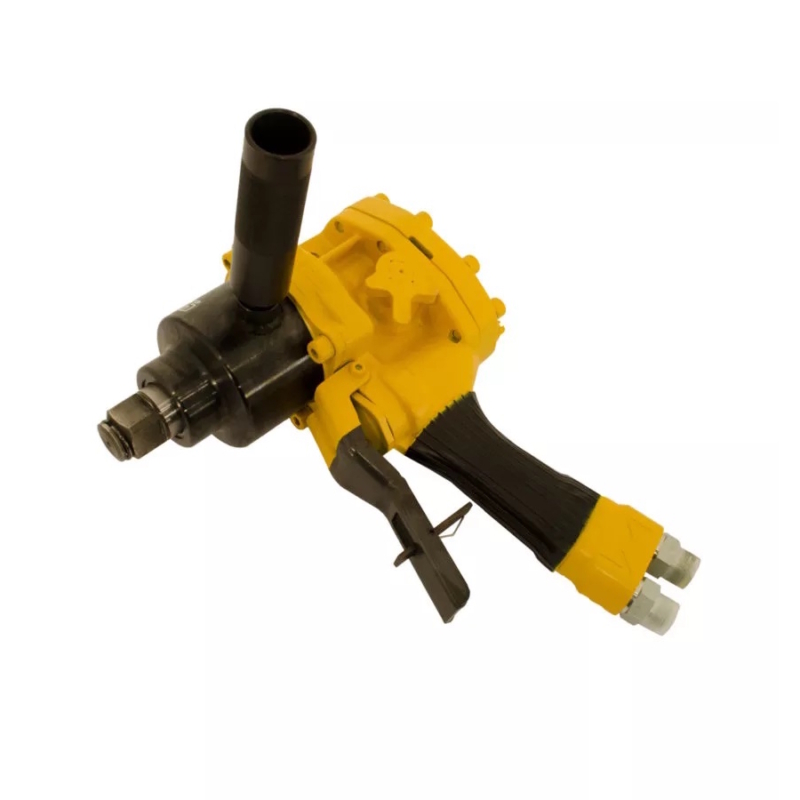

Spitznas 615190010 Atex Impact Wrench 1″ Sq Dr (Hydraulic)

The Spitznas 615190010 Atex  impact wrench 1″ square drive is a hydraulically driven unit that is both robust and reliable.

The Spitznas 6 1519 0010 Atex impact wrench 1-1/2″ is designed to be used on bolts and nuts upto M30 in size and it has a maximum torque of 1,700 Nm.

The Spitznas 615190010 Model as well as having the capability for use underwater it is also Atex group II, category 2 approved which means it is suitable for zones 1 and 2. Areas in which explosive atmospheres caused by gases, vapours, mists or air/dust mixtures are likely to occur occasionally. Including production facilities in the food industry, chemical plants, oil & gas, and the pharmaceutical industry.

Part No ATEX Specification Square Drive Bolts upto Hydraulic Flow Max. torque Noise level LpA Vibration level Weight
mm l/min Nm dB(A) m/s² kg
6 1519 0010 II2GExhIIBT5Gb 1″ M30 20-40 350-1,700 85.3 3.8 9.0
